Rule Security 50 Pairs HD Video Balun Kit for CVI TVI AHD CVBS with Tail

    This fits your .

  • Make sure this fits
    by entering your model number.

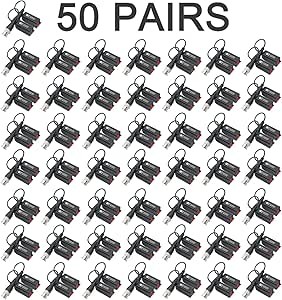

  • Package including 50 Pairs Mini CCTV BNC HD-CVI/TVI/AHD/CVBS Passive Video Balun


  • Passive device, no power required; Push-pin UTP terminal block;


  • Compatible with HDTVI, HDCVI, AHD and CVBS


  • Transmit HDTVI up to 250m, HDCVI up to 300m, AHD up to 300m; CVBS up to 300m;


  • Support 720P (25 / 30FPS) and 1080P (25 / 30FPS); Built-in transient protection;

The RULE Model RV-SP02CHD is a passive high definition balun with transmission distance of color signal up to 300m. It can be used as both transmitter and receiver, suitable for the expansion and application of HDTVI/CVI/AHD/CVBS video surveillance system.
The passive RV-SP02CHD features a push-pin UTP terminal block and Male BNC allowing connection directly to the camera or DVR. The CCTV Balun eliminates costly and bulky coaxial cable, allowing CCTV security and surveillance equipment to be connected using standard structured cabling techniques for neater and more streamlined cabling.
Datasheet
Environment:HD CCTV equipment for security and surveillance.
Cable:UTP Cat5 / Cat5E / Cat6
Protection:Built-in transient protection
Impedance:Unbalance 75 ohm; Balance 100 ohm
Signal to Noise Ratio:≥60dB
Max. Transmission Distance:HDTVI up to 250m, HDCVI up to 300m, AHD up to 300m, CVBS up to 300m.
Connectors:BNC, Push-pin Terminals
Temperature:Operating: -25° to 70° C.
Storage: -25° to 85° C.
Humidity: up to 95%
Enclosure: ABS fire retardant plastic
Weight:30g(1.06oz)
Dimensions:Length 32 mm * Width 21mm * Height 15mm, 150mm mini coax cable tail
